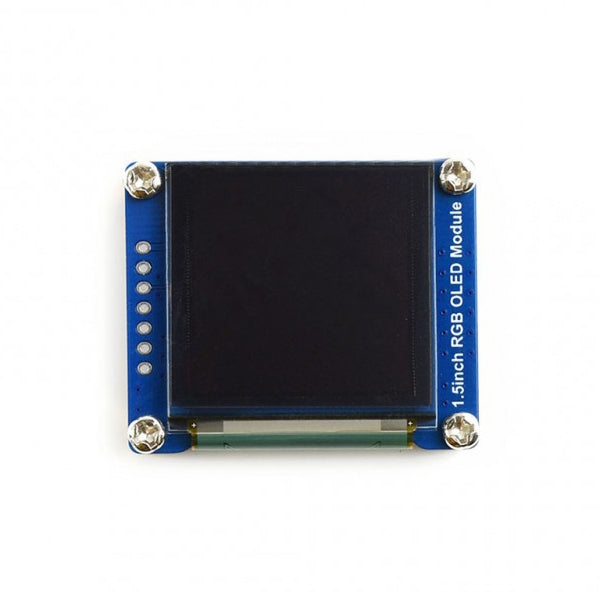

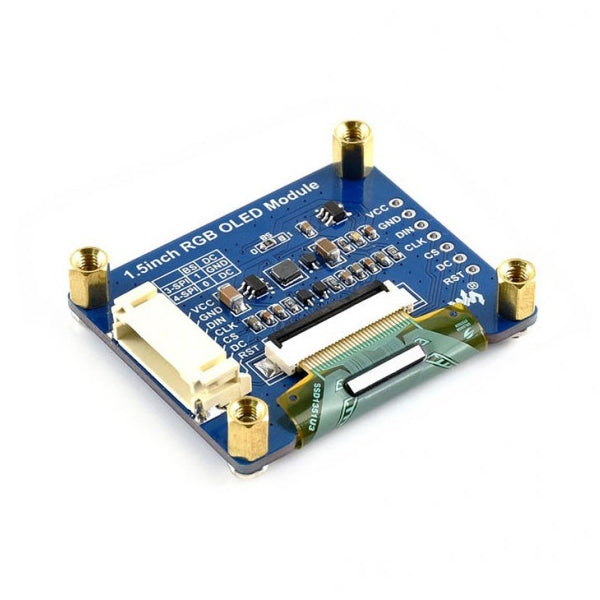

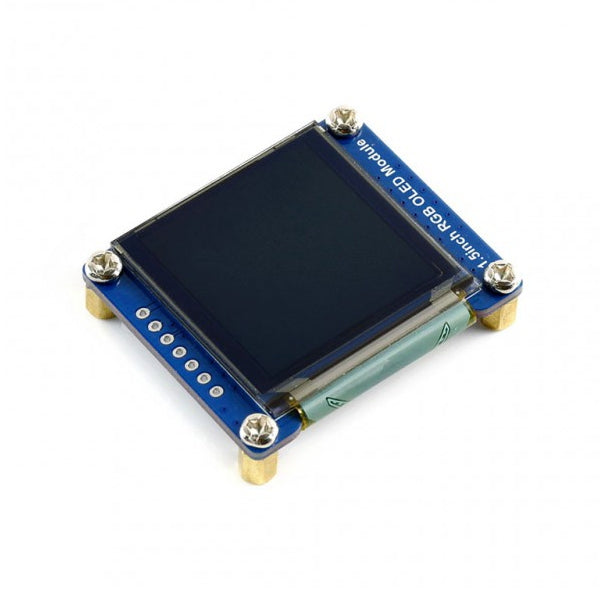

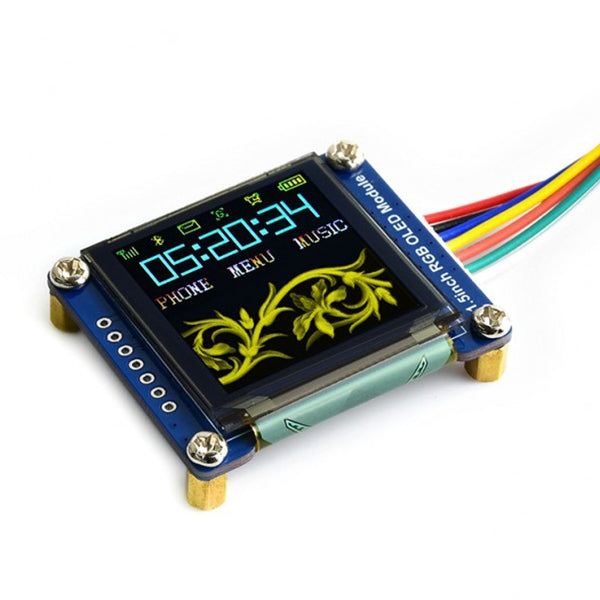

WAVESHARE 128x128 General 1.5inch RGB OLED Display Module 16-bit High Color with SPI Interface

WAVESHARE 128x128 General 1.5inch RGB OLED Display Module 16-bit High Color with SPI Interface

Regular price $52.00 USD
Regular price Sale price $52.00 USD
Sale Sold out
Shipping calculated at checkout.
Option
  • Express Shipping
  • 24/7 Support
  • Encrypted and Secure Payment
1. 128x128 high resolution, 65K colors, clearly displays colorful images
2. Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
3. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
7. Driver: SSD1351
8. Interface: 4-wire SPI, 3-wire SPI
9. Display color: RGB, 65K colors
10. Resolution: 128x128
11. Viewing angle: >160?°
12. Operating voltage: 3.3V / 5V
13. Dimension: 44.5 x 37 (mm)
