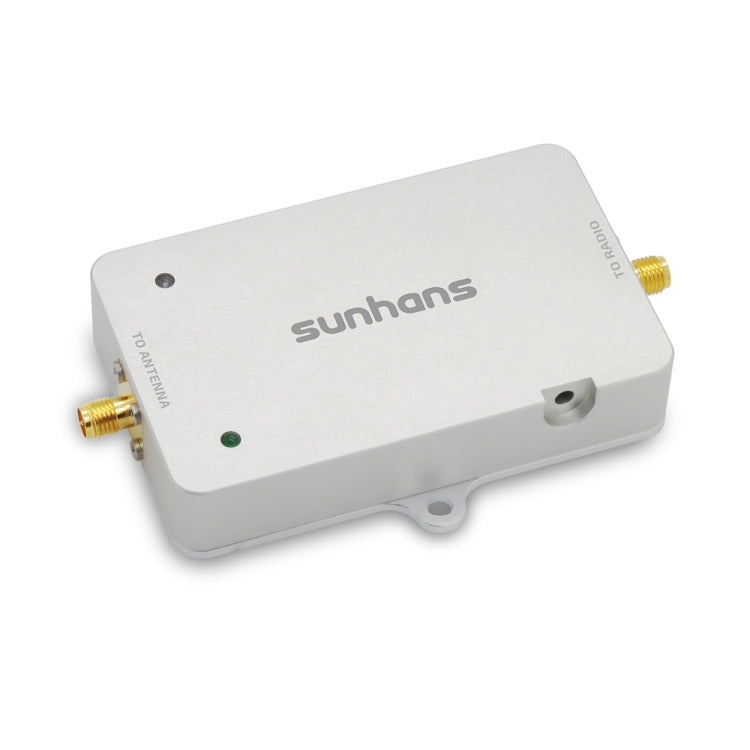

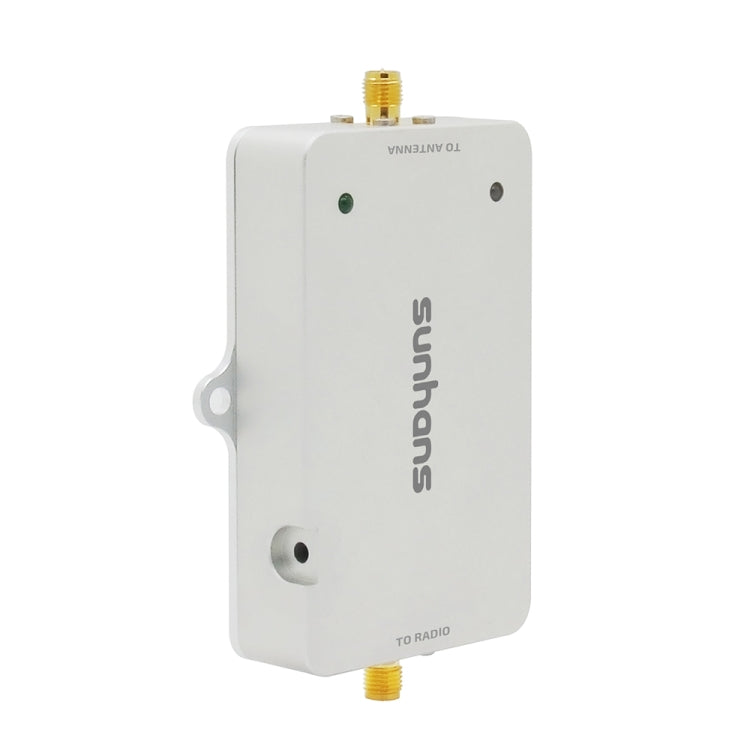

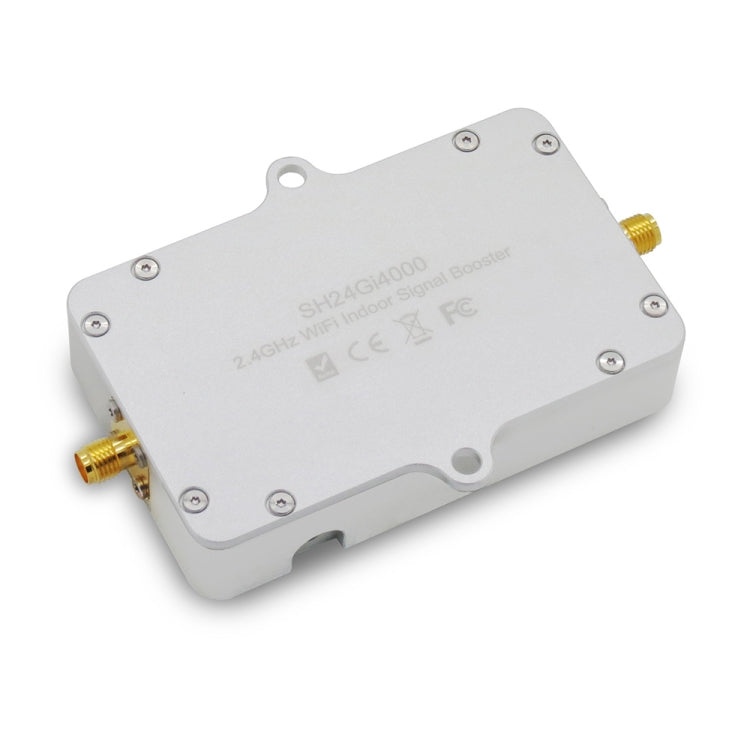

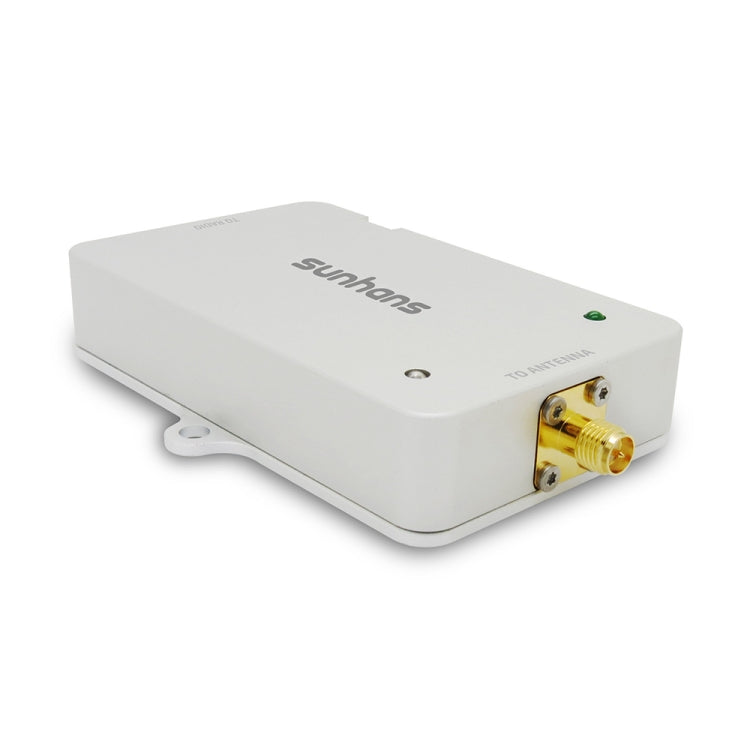

2.4Ghz Indoor WiFi High Power Signal Booster Amplifier 802.11 b/g/n (SH24Gi4000)

Parameters
1. Model Name: SH24Gi4000
2. Operating Range: 2400 ~ 2500 MHz
3. Channel width: 20 Mhz & 40 Mhz
4. Supported standards: IEEE 802.11b/g/n
5. Operation mode: Bi-directional, half-duplex, time division duplex
6. Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
7. Output power: 4000 mW (34 dBm)
8. Input power: 0 ~ 20 dBm
9. Transmit gain: 16-19 dB
10. Receiver gain: =<15 dB
11. Noise figure: =<3.5 dB typical
12. Frequency response: +/-1 dB over operating range
13. Power adapter: 6V/4A DC, 100~240V
14. Operating temperature: -20 degree C to +70 degree C
15. Operating humidity: Up to 75% relative humidity
16. Material: Cast aluminum
17. LED light: Power status LED and activity status LED
18. Booster size: 10 x 8.6 x 2.1 cm
19. Booster weight: 245 g
20. Package size: 19.5 x 16.1 x 7 cm
21. Package weight: 550 g
22. Package contents: 1 x SH24Gi4000 / 1 x RG316 cable with SMA connectors (20cm) / 1 x 6dBi omni antenna / 1 x power supply

Features
1. 802.11b/g/n Compatible
2. Auto gain adjustment
3. Cast Aluminum Weatherproof Construction
4. Tx / Rx LEDs Indication
5. Professional kits feature N-Female connectors
6. DC power feed through RF cable
7. Easy to mount
8. Expand the Access Point working areas including outdoor services
9. The line high power Amplifier can easily be connected to any 802.11 b/g/n Wireless Router or Access point for easy extension of its wireless range.
10. When used in conjunction with a Sunhans High Gain Omni-Directional wifi antenna (antenna is not includes) an appropriate coaxial cabling, this power amplifier will substantially increase your network effective coverage and signal stability for low power wireless devices, such as laptops, smartphones and tablets.
