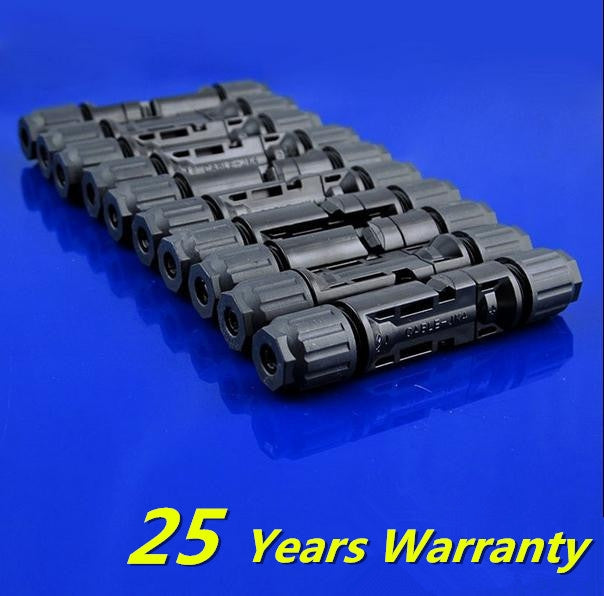

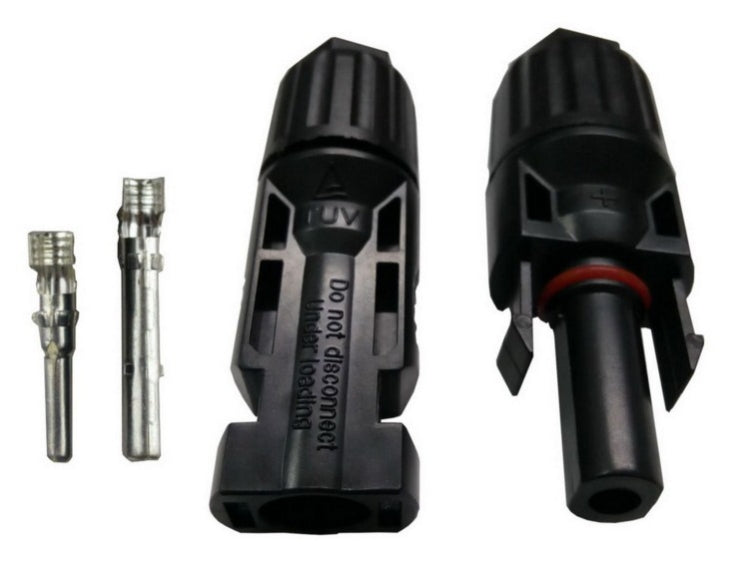

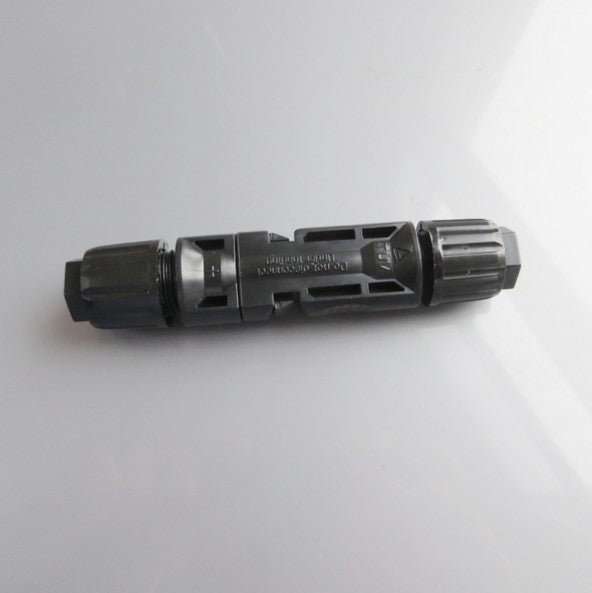

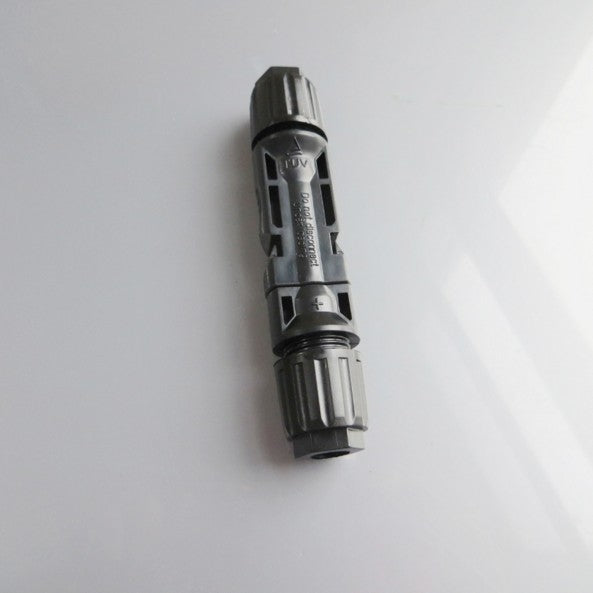

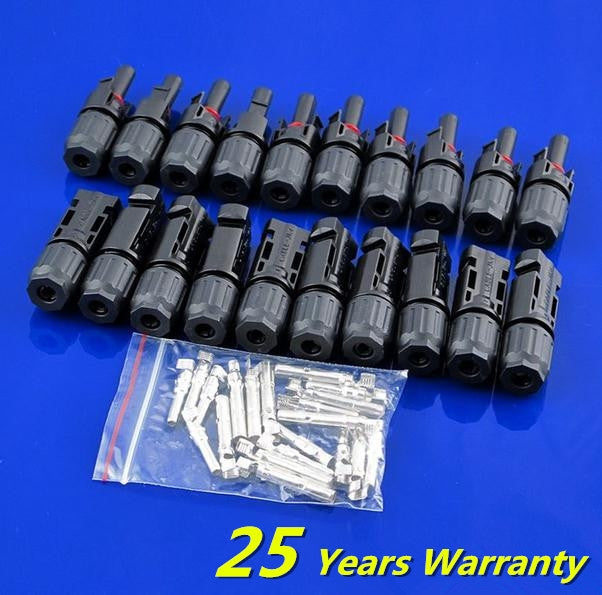

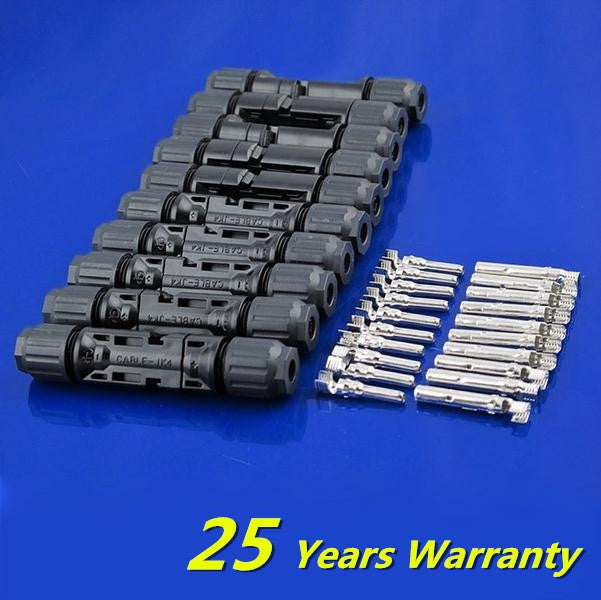

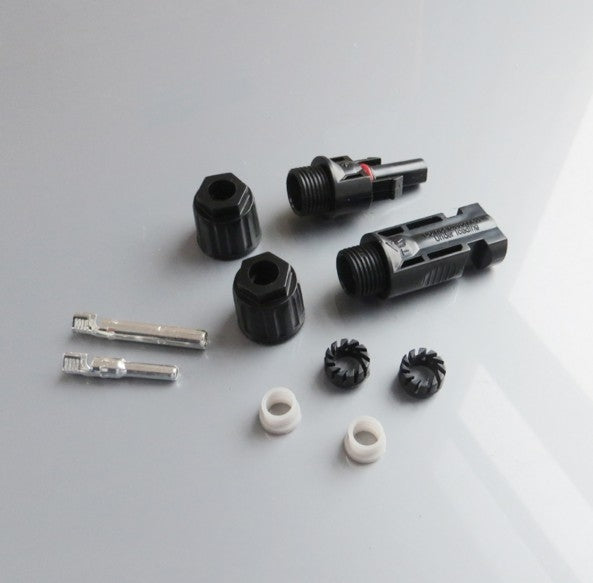

MC4 Connector male female 30A 1000V Solar Panel Branch Series

MC4 Connector male female 30A 1000V Solar Panel Branch Series

$3.00 USD
$3.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Express Shipping
  • 24/7 Support
  • Encrypted and Secure Payment
  • Model Number:EU
  • Connection:Plug In
  • Output Type:DC
  • Brand Name:ZOORUI
  • Usage:Electric Tool
  • Output voltage:DC1000V
  • Usage:solar
Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
