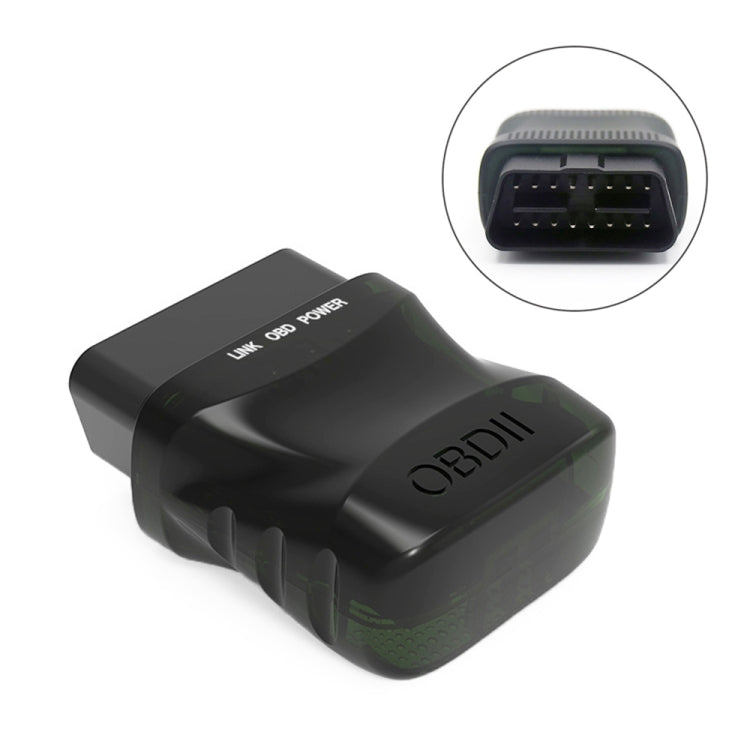

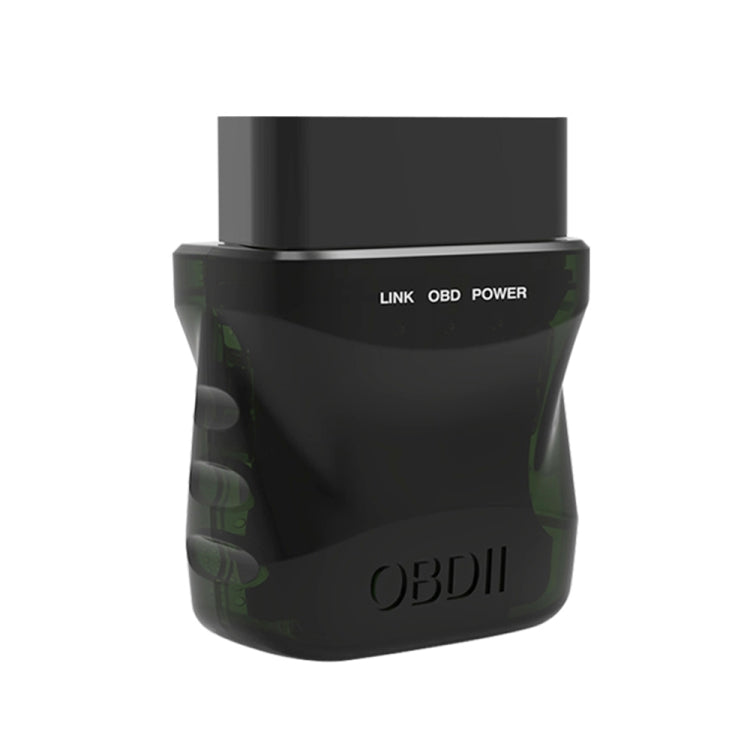

V015 OBD2 Scanner ELM327 Bluetooth 4.0 Fault Diagnostic Scanner

1. It is the latest version: supports all OBD-II protocols.
2. Bluetooth connection: no Batteries, Cables, or Switches.
3. Retrieve Fault Codes: (DTCs) and check engine,motor speed, fuel system etc.
4. Will work with 12 V gasoline and diesel vehicles. Requires OBD II protocols.

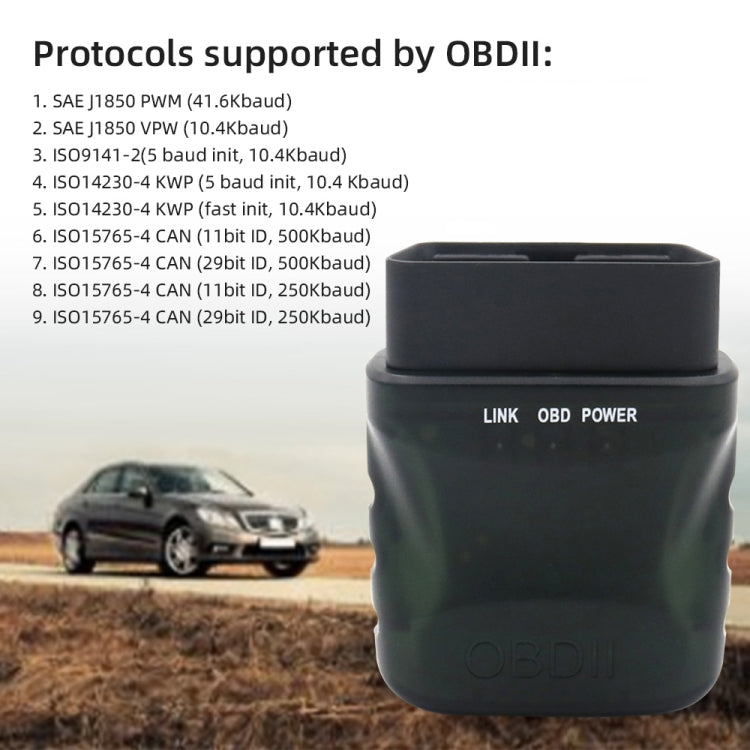

5. Communication protocol:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (fast init 10.4 Kbaud)
ISO 15765-4 CAN (1lbit ID, 500 Kbaud)
ISO 15765-4 CAN (29bit ID, 500 Kbaud)
ISO 15765-4 CAN (11bit ID, 250 Kbaud)
ISO 15765-4 CAN (29bit ID, 250 Kbaud)
6. Voltage:12V
7. Working current: 32mA
8. Working temperuture:-40-80 degree
9. Size: 57x46.2x24.2mm
10. Bluetooth Version: 4.0
