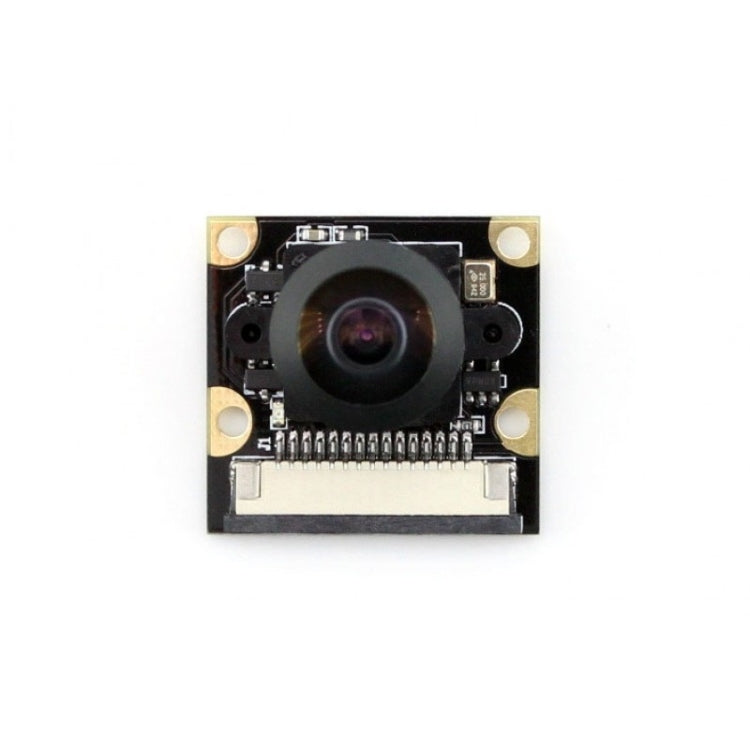

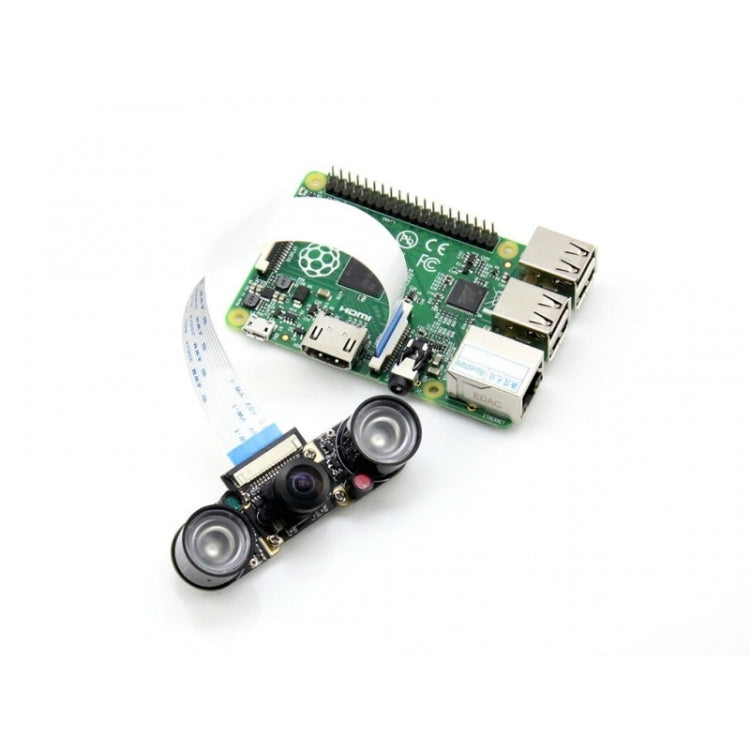

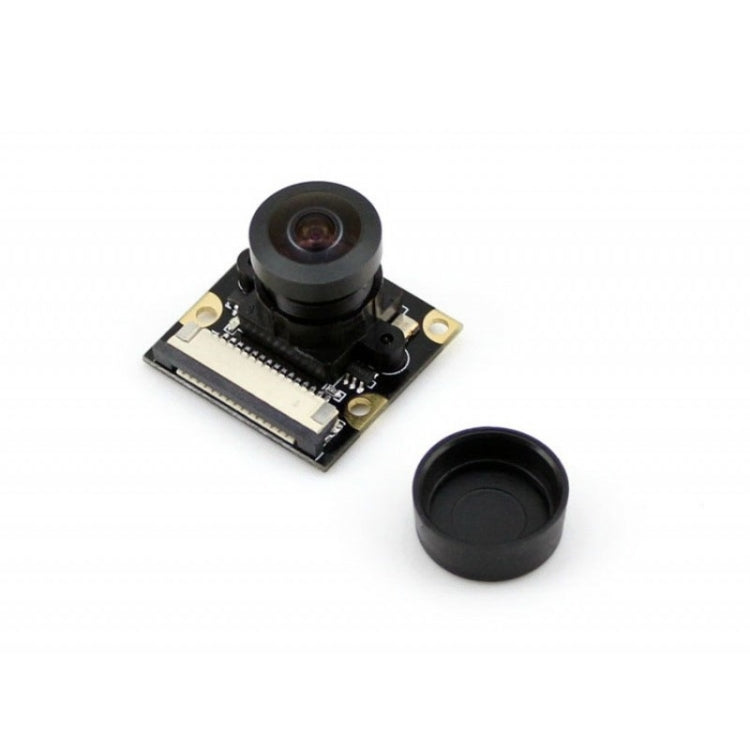

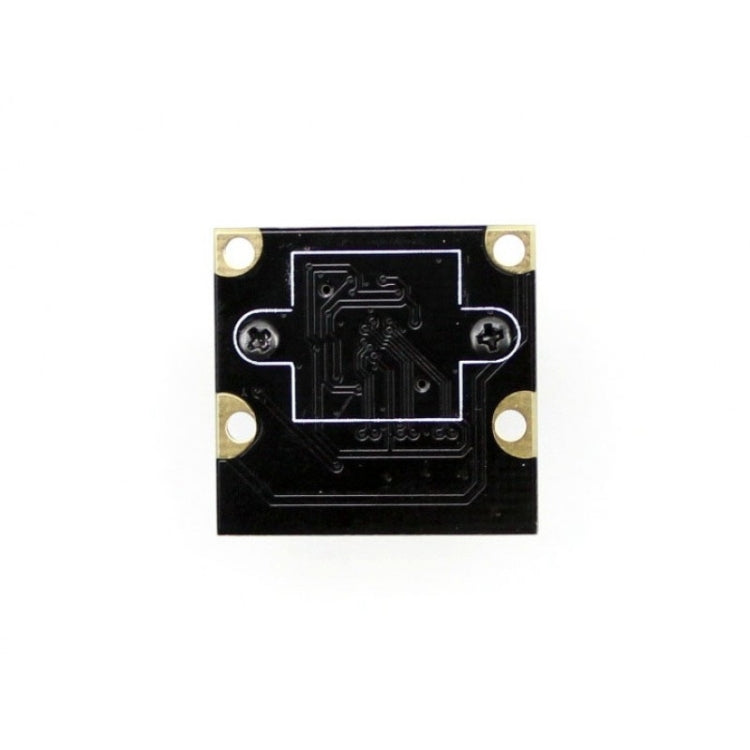

Waveshare RPi Camera (H) Module, Fisheye Lens, Supports Night Vision

Waveshare RPi Camera (H) Module, Fisheye Lens, Supports Night Vision

Prix habituel $75.00 USD
Prix habituel Prix promotionnel $75.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Option
  • Express Shipping
  • 24/7 Support
  • Encrypted and Secure Payment
Features
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 25mm x 24mm

Package Contents
1. RPi Camera (H) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
