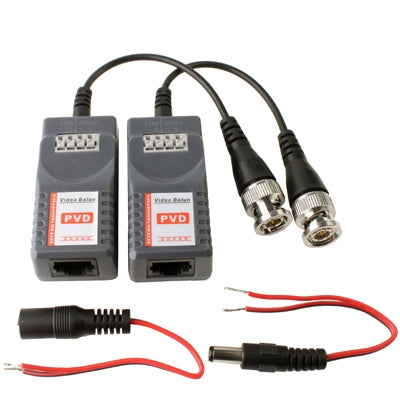

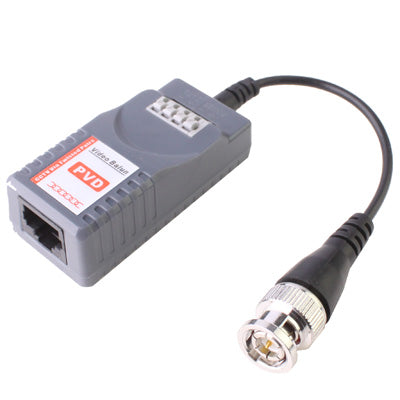

1) Power Video Audio / Data signals are routed via UTP and RJ45.The unit is a passive (non-amplifed) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted pair (UTP) telephone wire.
2) NTSC, PAL, and SECAM video formats
3) 60dB crosstalk and noise immumunity
4) Compact size and easy instllation
5) Built in transient suppression protection
6) Save cable cost 30%-50%
Technical Specifications:
1) Frequency response: DC8MHZ
2) Attenuation: 0.5dB typ
3) Impedance: BNC:75;RJ45:100
4) Working temperature:-10 degree Cto + 70 degree C
5) Storage temperature:-30 degree C to + 70 degree C
