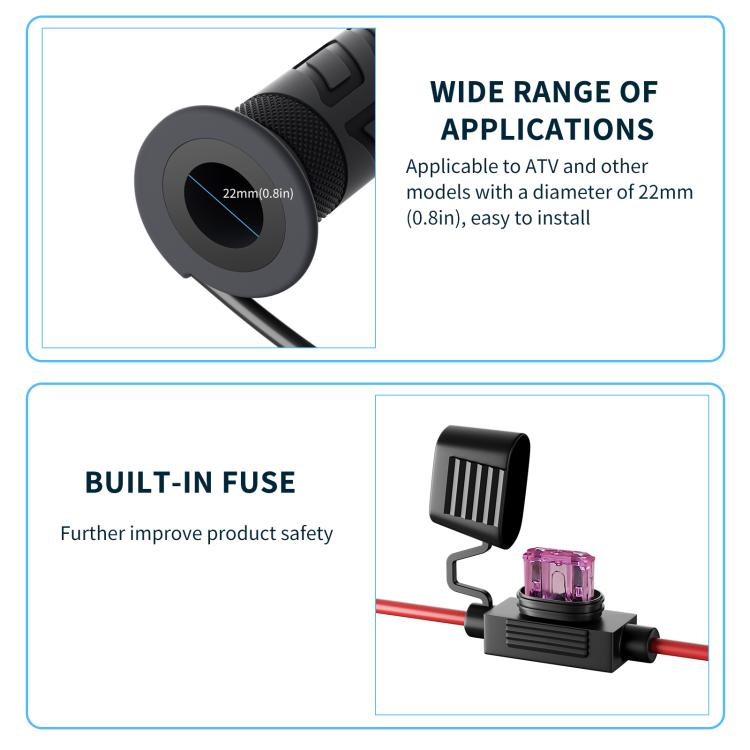

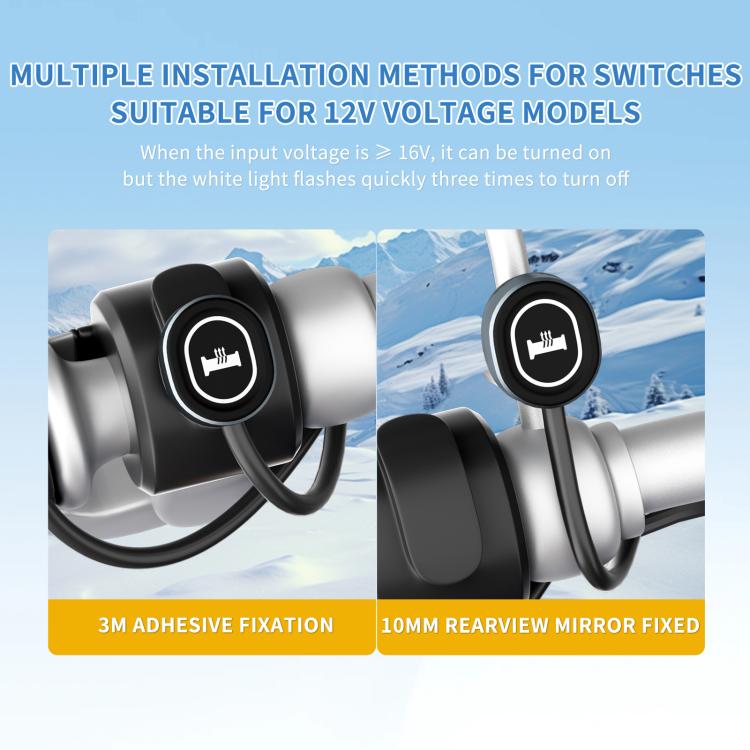

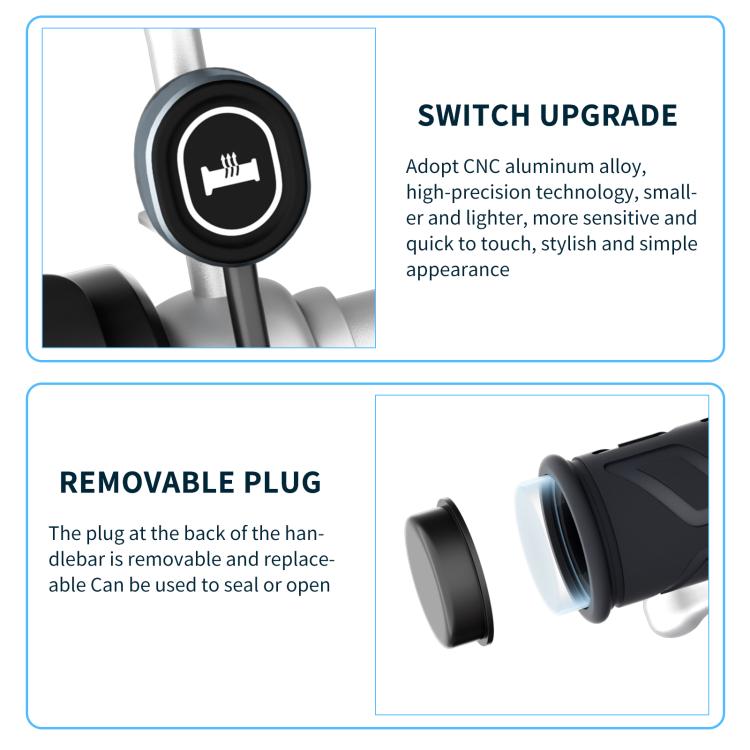

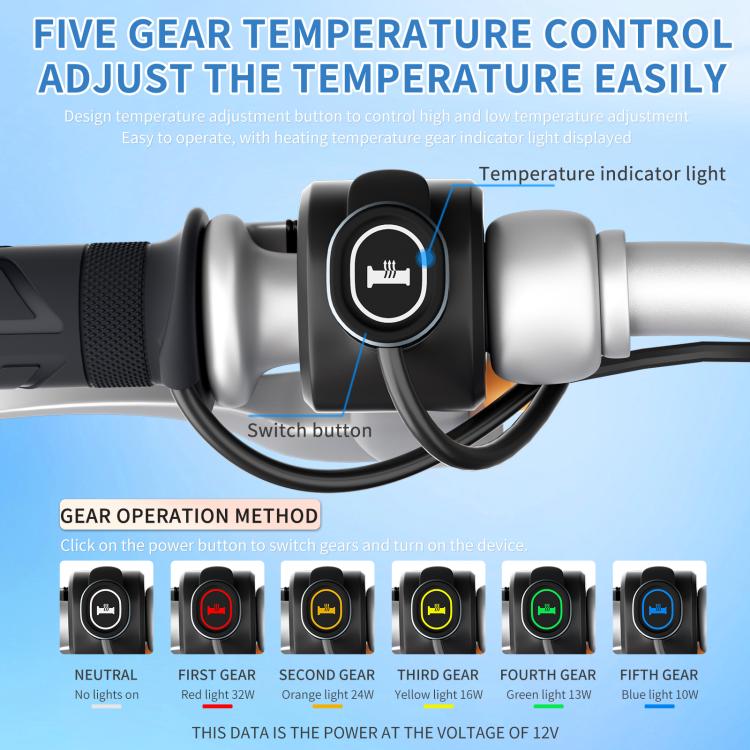

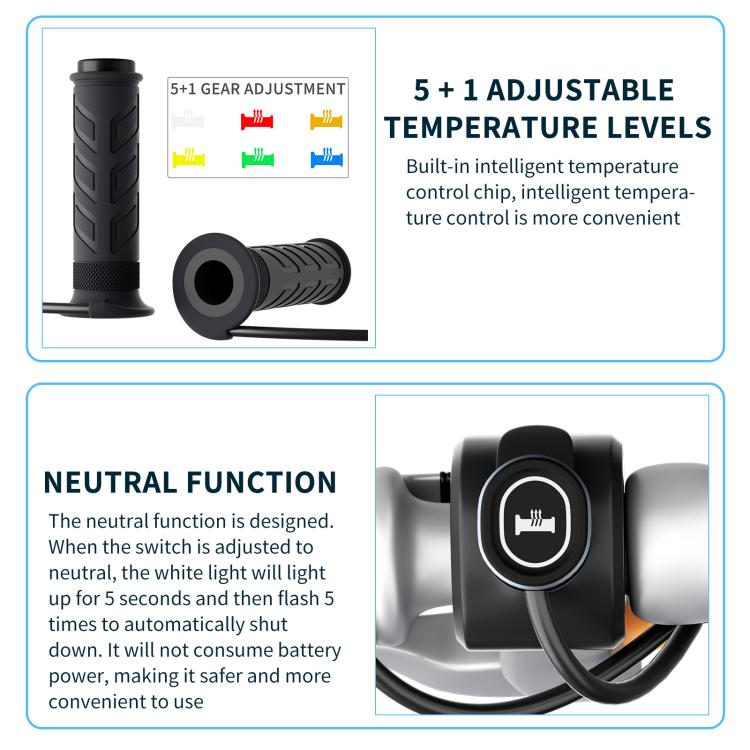

1. Material: nitrile rubber 2. Input voltage: DC 12V 3. Handlebar length: left 121mm; right 121mm (without handlebar stopper) 4. Power: 1st gear, red light 32W; 2nd gear, orange light 24W; 3rd gear, yellow light 16W; 4th gear, green light 13W; 5th gear, blue light 10W; Neutral gear, white light 0W (Power rating at 12V) 5. Operating temperature range: -20°C to +50°C 6. Suitable pipe diameter: 22mm 7. Switch type: metal, multi-position, adjustable temperature switch with memory function 8. Switch mounting: mirror mount, adhesive mount 9. Protection voltage: power on at 16V input, but will shut down if the white light flashes three times rapidly 10. The switch features a built-in intelligent temperature control chip, offering five adjustable settings and one adjustable temperature setting. This intelligent temperature control is more convenient and allows you to adjust the temperature to your desired setting. 11. A memory function has been added, ensuring the last set temperature is retained at any time, adding convenience and convenience. 12. A neutral position function has been designed. When the switch is in neutral, the white light will illuminate for 5 seconds and then flash 5 times to automatically shut down the unit. This function does not consume battery power, making it safer and more convenient to use. 13. The one-piece design prevents rain and dust from entering and corroding internal components, extending its service life and ensuring safety. Dual throttle cable clips allow for a wider installation range. 14. A more compact and lightweight design provides a more sensitive and quick touch. 15. A more comfortable, textured design ensures a non-sticky feel in summer and is more durable. After installation and heating, the heated handle will gradually tighten and become an integral part of the unit. 16. Net weight: 263g

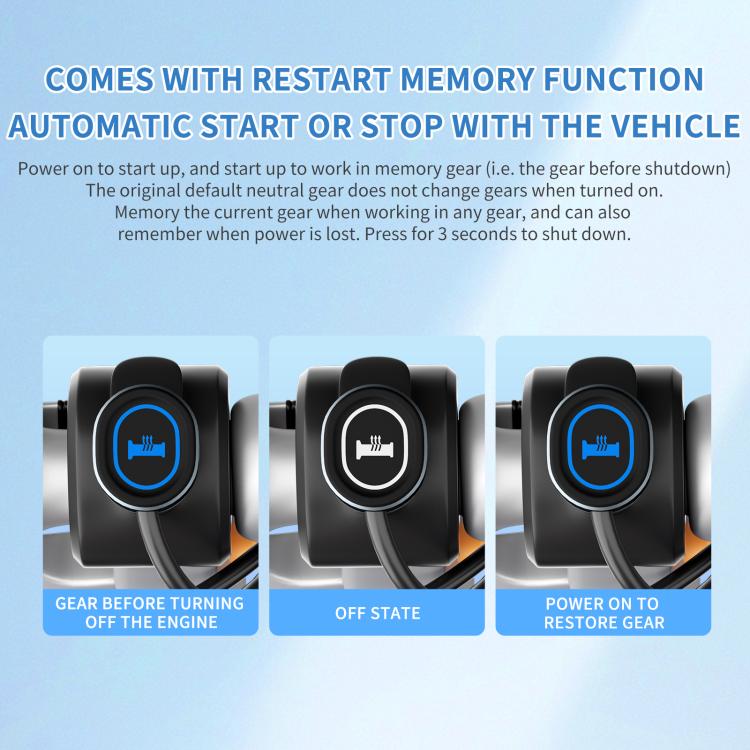

Instructions: 1. Single-click the power button to switch gears and turn on the unit. 2. The device starts up as soon as it is powered on and operates in the memorized gear position (the gear position before it was turned off). The default is neutral, and the gear position will not be changed during power-up. 3. The current gear position is memorized while in any gear position, and can be memorized even after power failure. Press for 3 seconds to shut down. 4. LED indicators for different gear positions: 100% red, 75% orange, 50% yellow, 40% green, 30% blue, and neutral is white. 5. Surge and reverse polarity protection.
Precautions 1. Reverse polarity connection may damage the device. If reverse polarity is connected within 5 seconds, circuit protection will prevent damage. Be sure to verify polarity before connecting. 2. Before installing the device, be sure to check the devices operating conditions. If the alternator is insufficiently powered due to excessive power consumption, battery aging, or excessive power consumption, the device will not function properly. 3. Low-temperature burns may occur. Avoid prolonged use. High temperatures can occur at full power. 4. Using the handlebars with the engine stopped may drain the battery. Always use the heated handlebars with the engine running.
