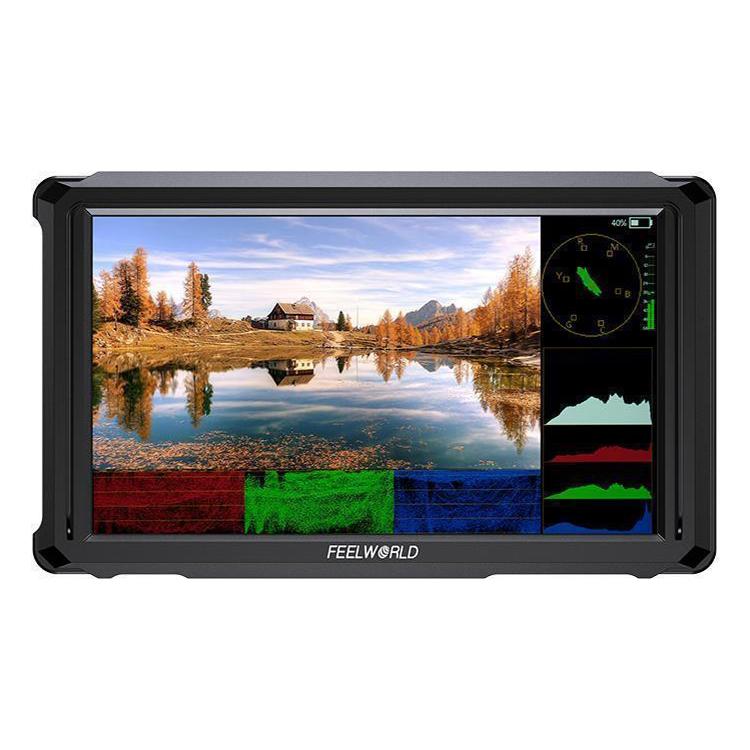

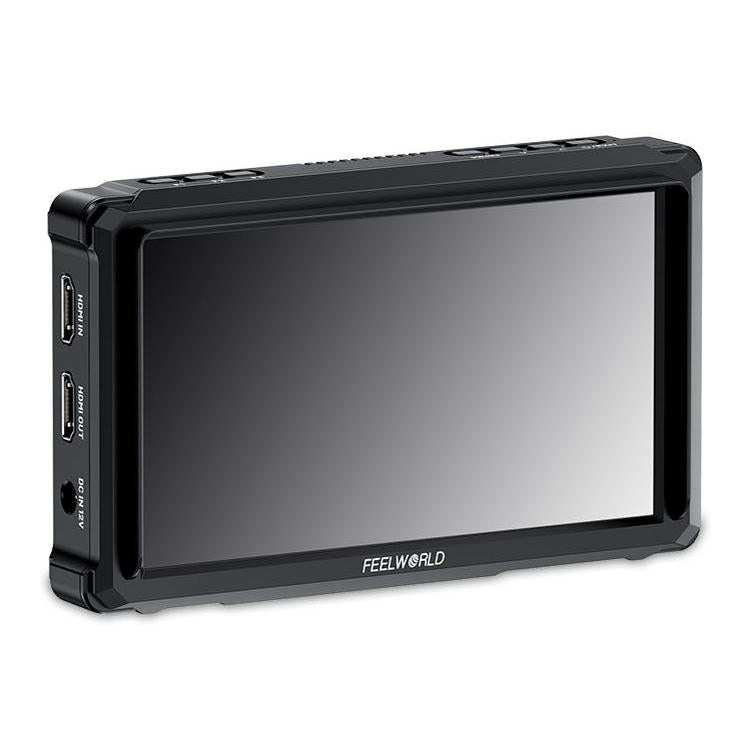

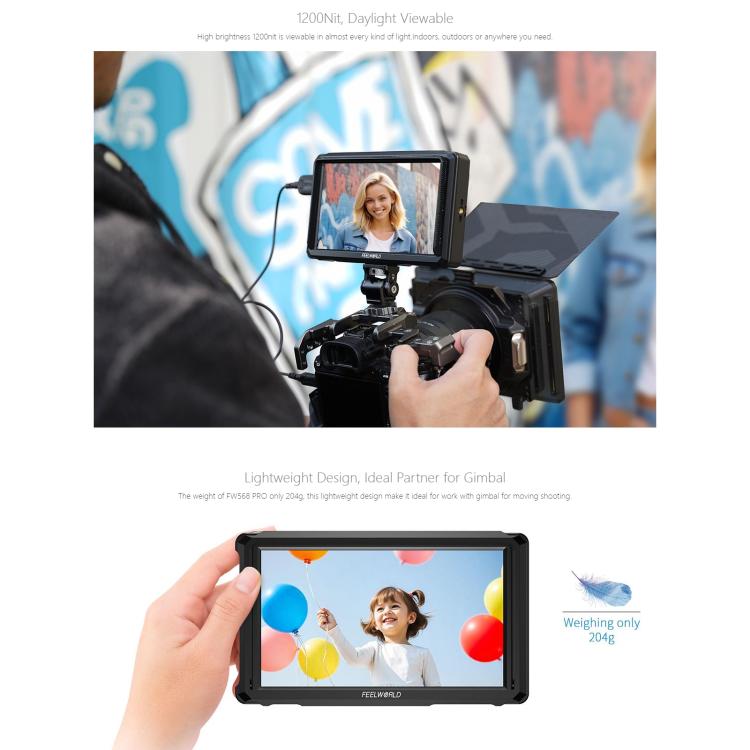

Display Spec. 1. Model: FW568 PRO 2. Screen Size: 6 inch IPS 3. Resolution: 1920 x 1080 pixels 4. Pixel Pitch: 0.069 (H) x 0.069 (V) mm 5. Aspect Ratio: 16:9 6. Brightness: 1200cd/m2 7. Contrast Ratio: 1000:1 8. Backlight: LED 9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input 1. 1 x HDMI-compatible: HDMI-compatible 2.0 2. 1 x Type-C: 1. 5V Type-C (Note: please use more than 5V/2A Type-C power supply); 2. Firmware update/LUT file import

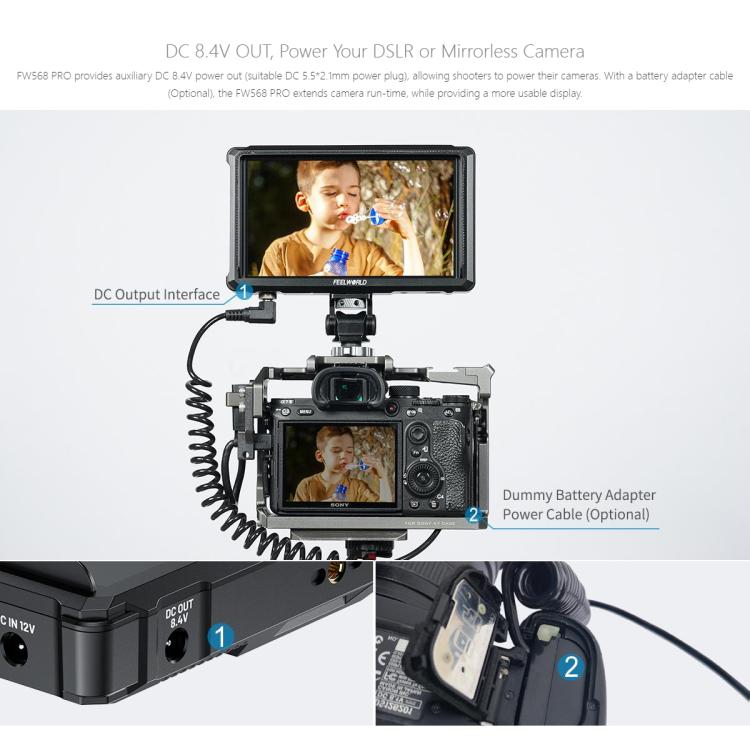

Output 1. 1 x HDMI: HDMI 2.0 2. 1 x DC Output: DC Output
Audio Audio: Stereo Headphone

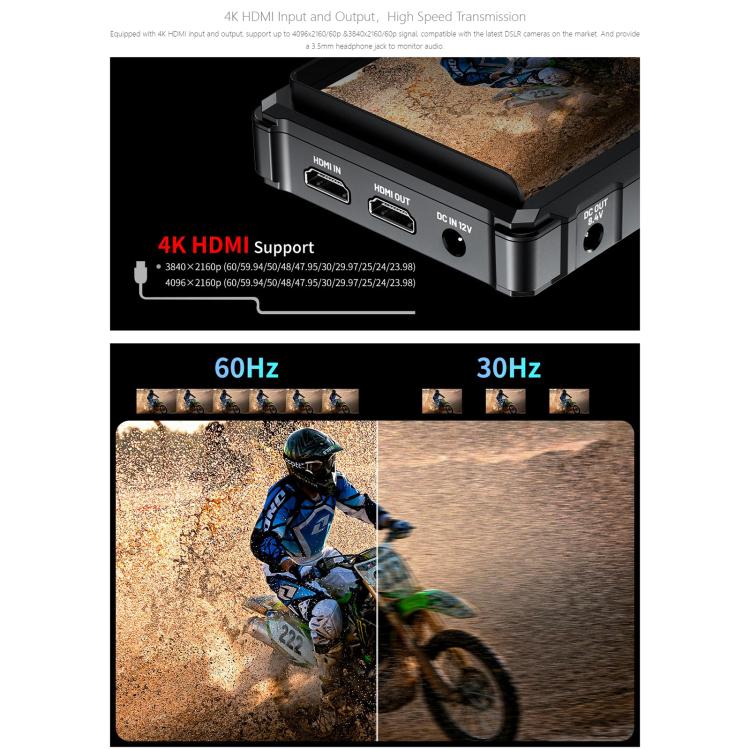

HDMI-compatible Input/ Output Support Format 1. 480i/576i/480p/576p 2. 1080i (60/59.94/50) 3. 720p (60/59.94/50/30/29/25/24/23.98) 4. 1080p (60/59.94/50/30/29.97/25/24/23.98) 5. 3840 x 2160p (60/50/30/29.97/25/24/23.98) 6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)

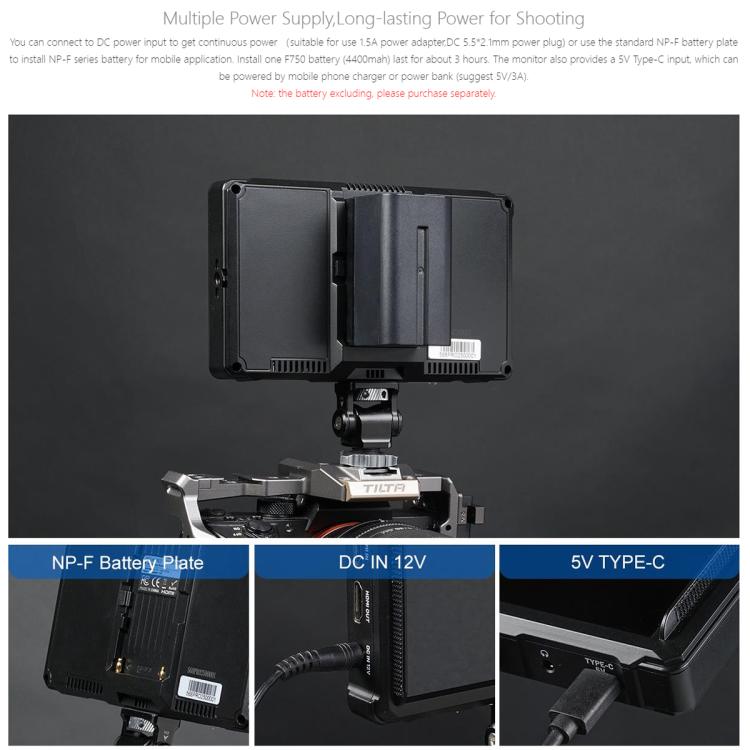

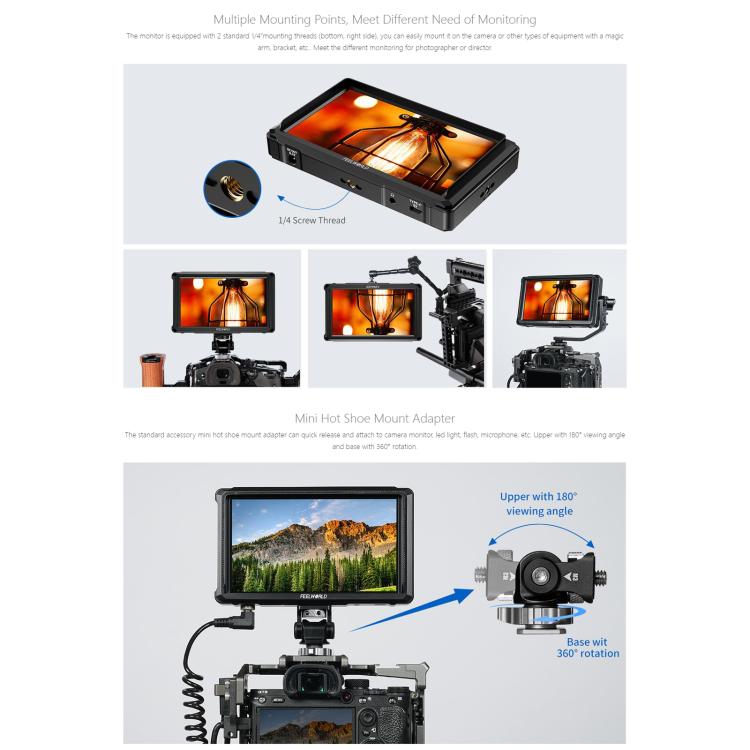

General 1. Input Voltage: DC7~24V 2. Power Consumption: Less than or equal to 11W 3. Power Connector: DC (suitable for 5.5x2.1mm power plug cable) 4. Working Temperature: -0 degree C~50 degree C 5. Storage Temperature: -10 degree C~60 degree C 6. Install Way: 1/4 thread points (bottom, right side) 7. Unit Size: 161x96x33.3 (mm) 8. Unit Weight: 204g

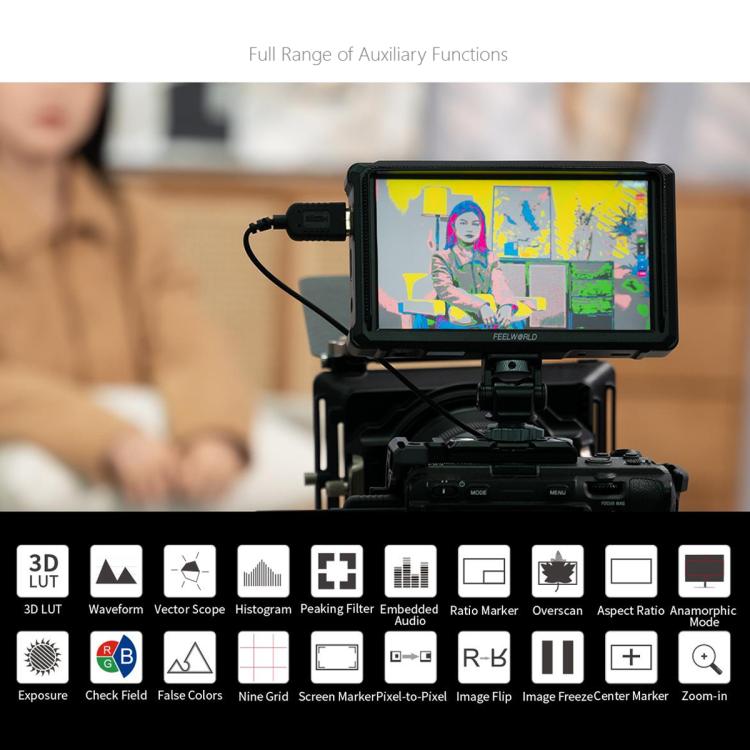

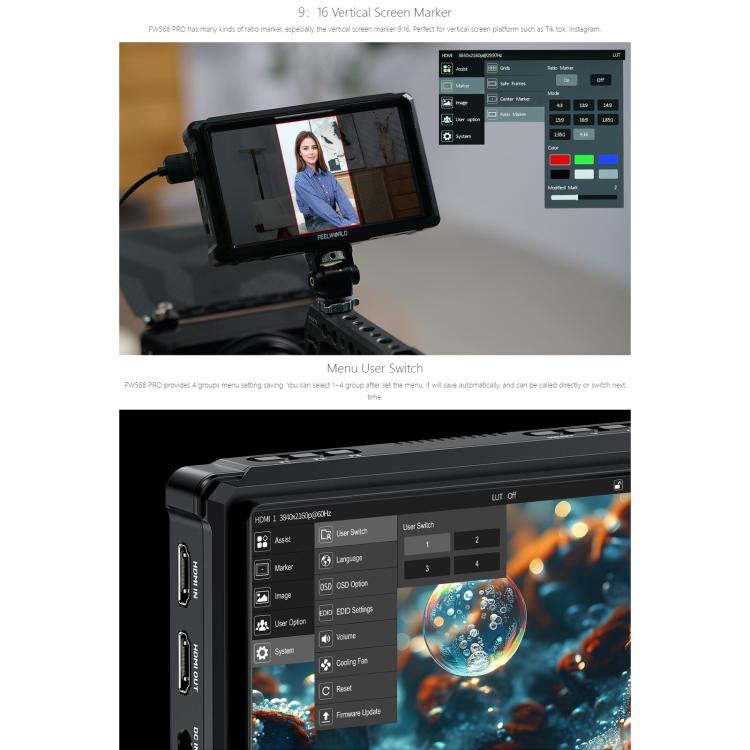

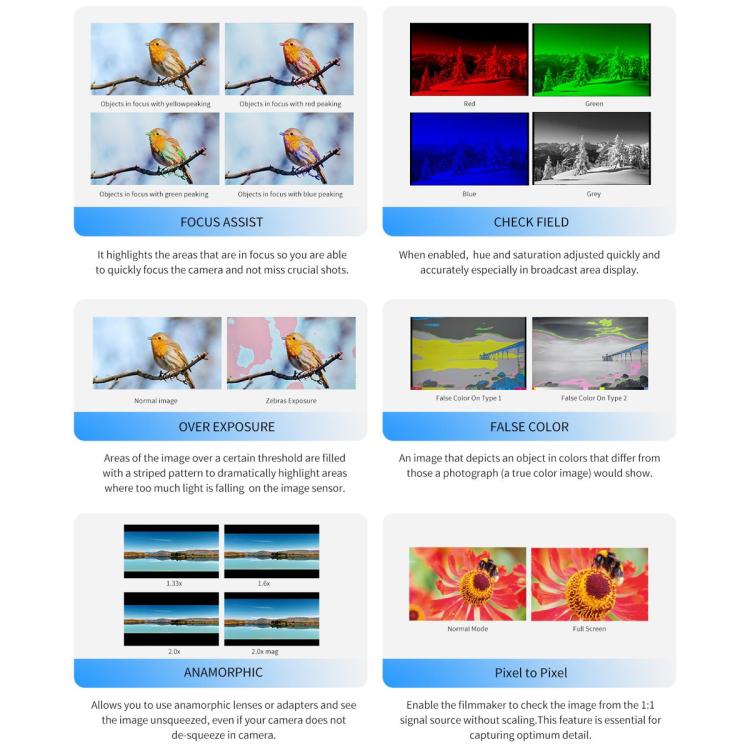

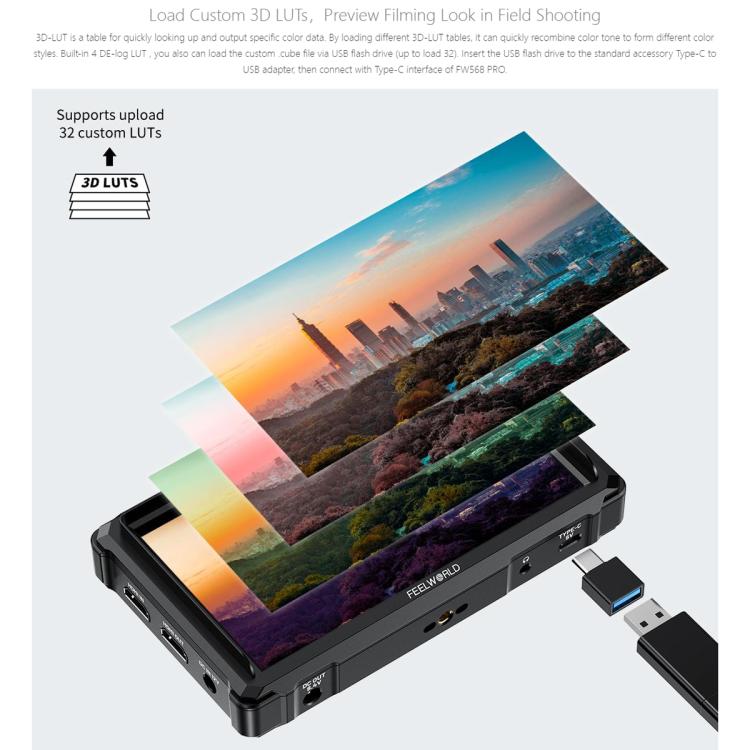

Advanced Features 1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) 2. Waveform (RGB, YUV, Y) 3. HDR 4. Vector 5. Histogram (RGB1,RGB2,Y ) 6. Embedded Audio 7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) 8. False Colors (Normal, ARRI) 9. Over Exposure (10RE～100IRE adjustable) 10. Check Field (Red, Green, Blue, Mono) 11. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom) 12. Scan Mode (Under Scan, Over Scan) 13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) 14. Image Flip ( H Flip, V Flip, H_V Flip ) 15. Image Freeze 16. Center Marker 17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16) 18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) 19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) 20. Marker Color (Red, Green, Blue, Black, White, Gray) 21. User Switch (1~4) 22. Zoom Mode (2X, 4X, 9X, 16X, User) 23. Pixel to Pixel 24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100) 25. Display Range(Auto, Limit, Full) 26. EDID Setting (1.4, 2.0) 27. Power Setting (Auto, Manual) 28. Color Temp. ( 5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)

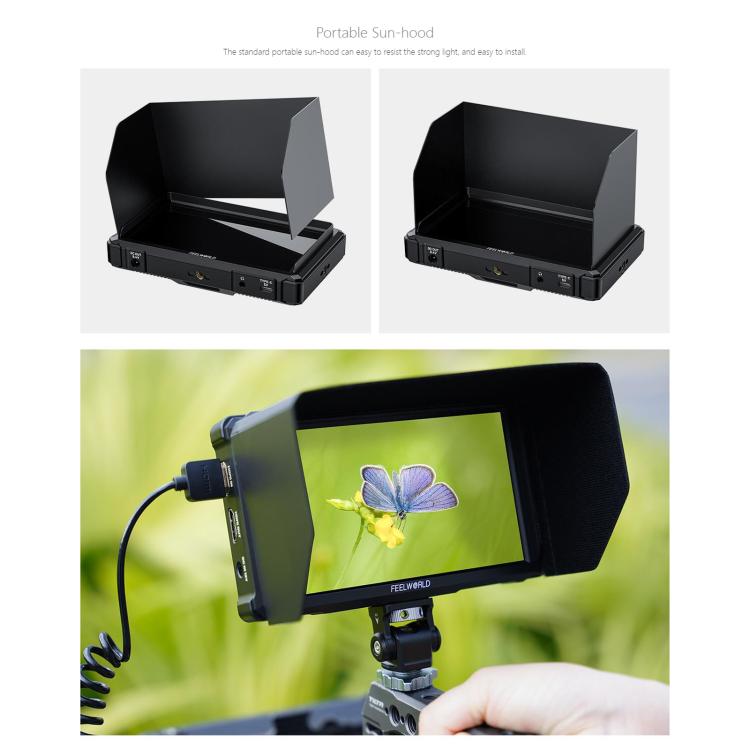

Packaging List: 1. Monitor x 1 2. HDMI-compatible Cable x 1 3. Micro HDMI-compatible Cable x 1 4. Sunshade x 1 5. Mini Hot Shoe Mount+Hex Wrench x 1 6. USB-A to USB-C Adapter x 1 7. Cable Management Tie x 1 8. Manual x 1
