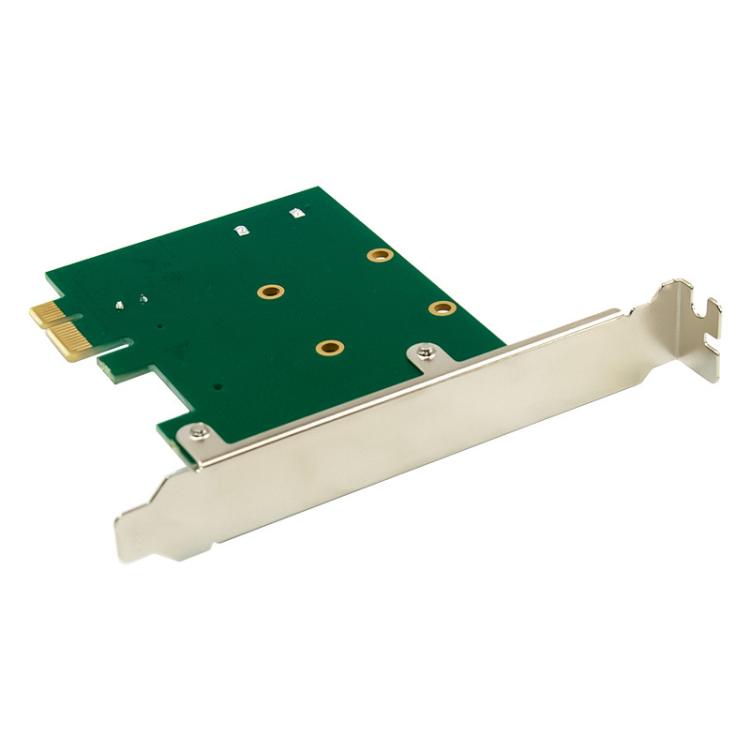

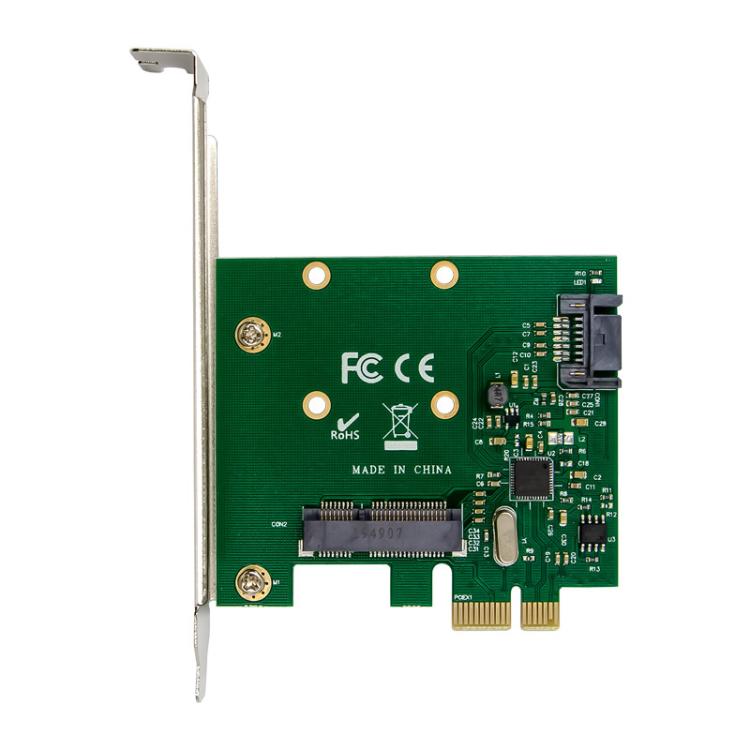

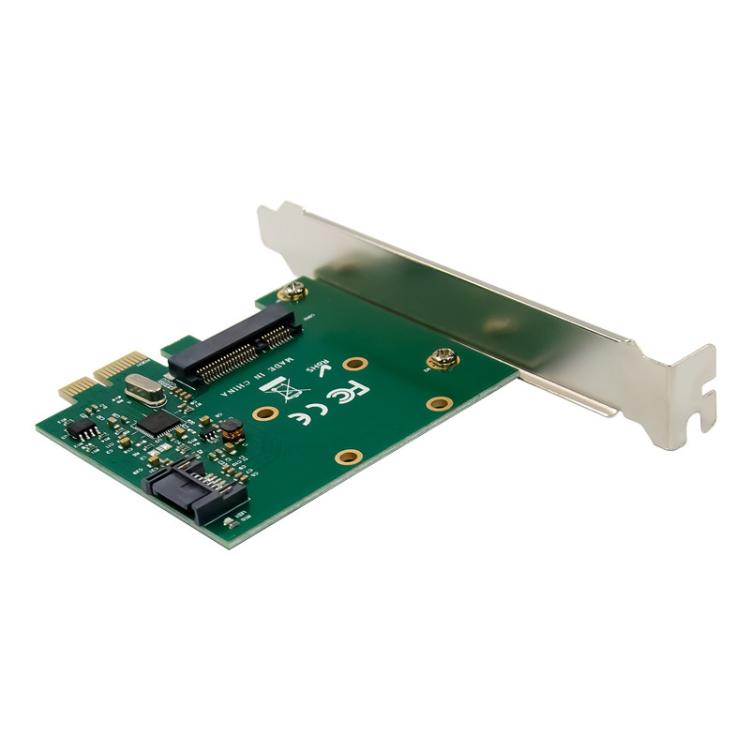

1. ASM1061 is a PCI Express Gen 2 to two-port serial ATA controller, supporting serial ATA PHY, up to 6Gbps high-speed interface 2. Backward compatible with SATA2.0/SATA1.0, and has Msata interface and SATA interface, can connect HDD, SSD and other extended storage
PCIe slot: 1. Compliant with PCIe 2.0 specification, support 1xLane PCIe 2.0 endpoint device 2. Support communication speeds of 2.5 Gbps and 5.0 Gbps 3. Payload payload up to 128 bytes 4. Support error reporting, recovery and correction 5. Support message signaled interrupt (MSI)
SATA controller: 1. Compliant with Serial ATA Specification 3.0 2. 1 x 7 Pin SATA port, 1 x mSATA half/full size port 3. Support communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps 4. Support programmable transmitter signal level 5. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i 6. Support two SATA ports 7. Support AHCI 1.0 and IDE programming interface 8. Support native command queue (NCQ) 9. Support port FIS-based switching or command-based switching 10. Support partial and sleep power management states 11. Support staggered rotation

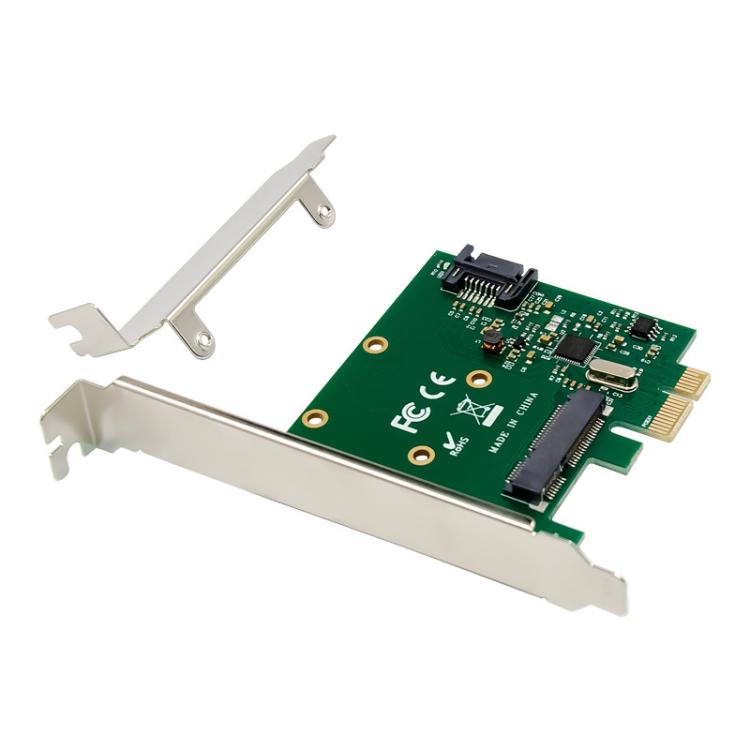

Packing list: - Array card x 1 - Short iron sheet x 1 - Screw kit x 1 - CD driver x 1
